Exhaust Monitoring System
Accidents from Exhaust can be prevented beforehand, and the Data can be managed using the FDC.
The PM cycle can be managed, and engineer losses can be decreased by supervising the Trends.
- The Exhaust can be monitored real-time and be connected to the FDC.
- Manufacturing process accidents can be prevented depending on the Exhaust ascent / descent.
- Any Process Errors that occur can be checked with the FDC.
- The Exhaust ascent / descent Trend and Line’s pollution status can be checked. (PM cycle
management)

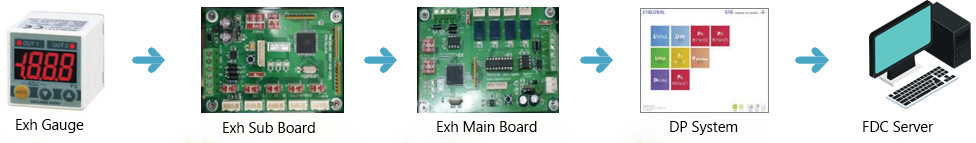

Diagram
SENSOR SPECIFICATION
| Size |
30mm x 35mm x 30mm |
| Weight |
35g |
| Power |
12 ~ 24 V DC |
| Fluid |
Air, N2 |
| Pressure Range |
50Pa, 100Pa, 500Pa |
| Operating Temperature |
-10℃ ~ +50℃ |
| Operating Humidity |
35% ~ 85% |
BEFORE / AFTER COMPARISON
| Description |
Before |
After |
| FDC Interlock |
X |
O |
| FDC Trend Management |
X |
O |
| PM Cycle Management |
X |
O |
| Accident Prevention |
X |
O |
